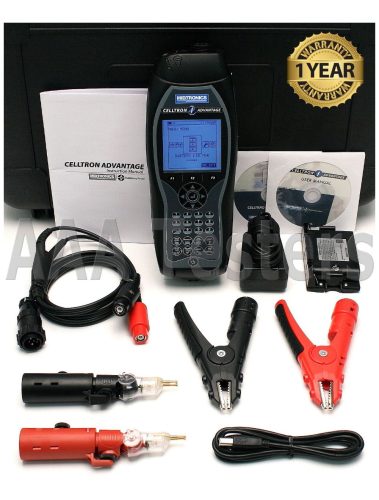

Midtronics CAD-5500 Trimex Electronics Battery Analyzer w/ Opts: Trending, Multimeter, Discharge Manager, Generator Test
5 600 000 CFA

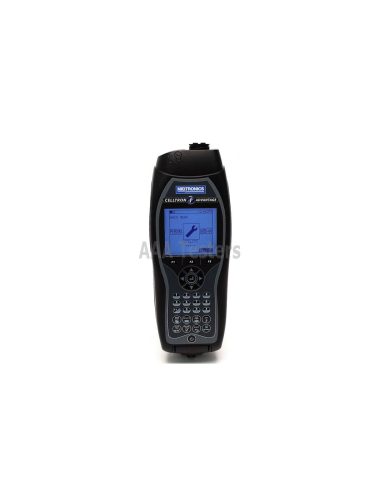

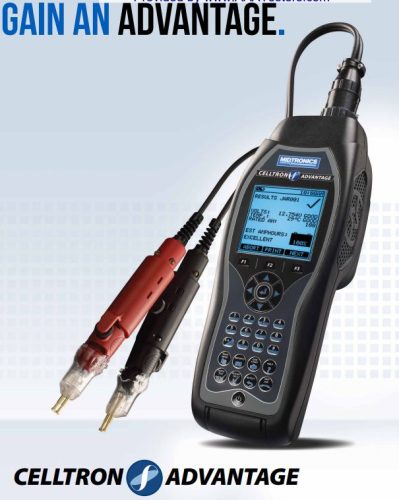

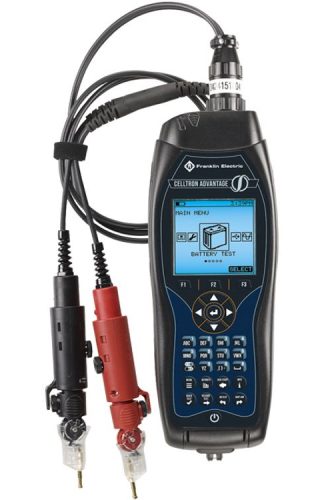

Midtronics CAD-5500 Battery Analyzer
Battery management and testing are critical for maintaining power integrity for telecom networks, data centers, utility transmission and distribution systems. The demand placed on these systems has increased dramatically in the past decade. Service providers, operations and maintenance teams need to gain an advantage over this mounting responsibility. The CELLTRON ADVANTAGE system provides a user-customizable, flexible, efficient and economical tool to take on this critical task.

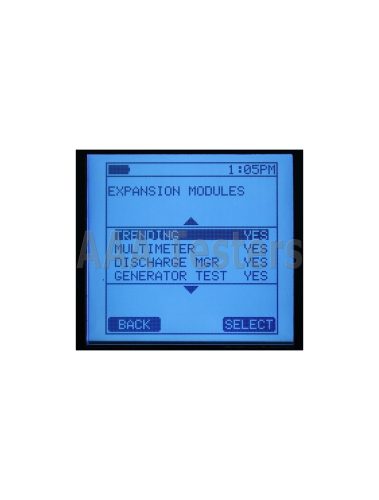

Features complete software modularity/add-ons for just what is needed to get the job done:
- Base unit provides battery Conductance (state of health assessment), voltage and integrated temperature measurement • Custom modules available to meet battery p
- Decision/Algorithm that provides estimated Ampere Hours by battery jar
- Guided test interface to simplify technician interaction
- Integrated site trending capability
- o Multimeter functionality
- Discharge test manager: increase automation and accuracy of discharge test
- Generator starting battery test
All system levels offer these advantages:
- Highly efficient test process: 50% reduction in test time from other battery analyzers
- Less invasive testing approach reduces battery discharge, voltage measurement skew and allows for more tests on a single internal battery without recharge
- Full compatibility with Midtronics CELLTRAQ Battery Data Management System for simple and efficient data tracking, reporting and decision making; data transfer via USB
- Field software updates, including module add-ons
- Interchangeable test interfacesfor technician ease of use and lower maintenance cost
- Integrated battery temperature measurement
- Integrated lighted test interfaces
- Test continuity/accuracy indication on test interfaces
- USB data connection and storage compatible
- On board battery pack to support test time of 6-8 hours
Application compatibility:
- Telecom/DC Plants online
- All UPS applications
- Battery voltages down to 1 volt
- Field software updates, including module add-ons
Modular Compatibility with Midtronics SMART CABLE System™
- RFID interface with batteriesto capture system setup and store and update battery test parameter history on site
- Drives initiation of advanced AH algorithm when SMART CABLE is utilized
Specifications:
| Applications: | Tests Individual Lead-Acid or Nickel-Cadmium cells or Monoblocks (uptto 16 Volts) in any common conifguration, approximately 10-6000Ah. |
| Voltage Range | 1.5 – 20.0 Volts DC |
| Conductance Range: | 100 – 19,990 Siemens |
| Test Data storage: | 50 String location of 280 Test results Stored internally |
| Accuracy: | +/- 2° Across test range, Volage and conductance |
| Voltmeter Resolution | 5mV |
| Keypad: | Alpha-numeric, Stainless-steel Dome, Polycarbonate overlay, 1,000,000 actuations |
| Data transfer: | USB Flash Drive (Type A) USB PC Interface (Type B) Infra-Red, Half Duplex IRDA protocol for printer |
| Environmental operating range: | 0 to 40°C, 95% relative humidty, non-condensing |
| Storage temperature | -20 to 82°C |
| Over Voltage Protection: | Auto-reset disconnect Reverse polarity protected |
| Housing Material: | Acid-resistant ABS plastic Santoprene overmold |
| User Programmable Function: | Preset values for over 250 battery types Low voltage alarm setting Low conductance warning Low conductance failure Test Mode (Pushbutton/auto start) |
| Calibration: | Auto-calibration prior to every test, no future calibration required Connectorized test |
| Cable Options: | Dual Contact Clamps Dual contact probes Cust cables by quotatition |
| Power Requirements: | 7.2V, 2500mAh, NiMH Internal Swappable Battery & Charger |
| Display | LCD- FST 2.97 in x 2.81 in (75.4 mm x 71.3mm), 128 x 128 Pixels, 40 degree viewing angle, contrast ratio, LED backlight |
| Analyzer Dimensions | 11in x 4in x 3in 80mmx150mmx80mm |
| Case dimensions: | 19inx15.5x7in 485mmx395mmx180mm |
| Analyzer weight: | 1 Kg/2.6 lb |
For full Midtronics Celltron Advantage product specifications, please click here: https://bit.ly/44emAuj
